Farms can view basic information GWT system after installation related server information.
The default is Farm1, where you can modify the name (recommended to keep the default).
Displays the name of the area that current server locates and the name of the DC server.

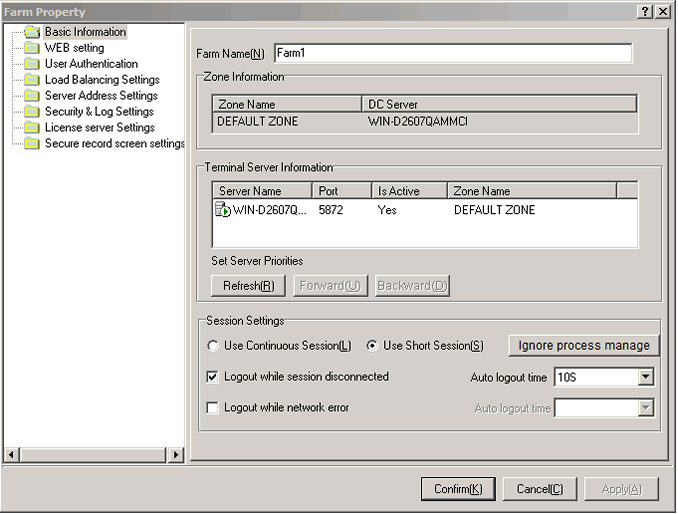

Lists all Windows Terminal Server communications port used by the server name, select the appropriate server, click【Forward】or【Backward】 GWT server can change the priority, as shown below:
Interface Configuration and Item Description:
♦ GWT System Premium Edition or later have the ability to dynamically load balancing drift. It is possible in these configuration server priority
DC external services, when the GWT server load balancing (DC) fails. One row below GWT server will automatically upgrade to【Load
Balancing Server (DC)】 to take over the entire Farm load work can also be specified manually. And if it is GWT Standard Edition, you need
not to set.
♦【GWT Server Load Balancing (DC)】: primarily responsible for collecting load information for all servers, and according to "Load Balancing
Policy" to make "the most idle server"the ruling. In actual operation, when an active DC failure, all active servers in the Farm will select one of
the most powerful server as the current【Load Balancing Server (DC)】. This will not occur due to DC failure caused the loss of the entire
Farm load balancing capabilities.
♦ In the list【Terminal Server Information】, the higher the position the more server's DC campaign level.
Note: Only GWT with more advanced version possess of load and Farm capabilities, the standard version does not have the setting.
1.4.1 Continuous Session:
Continuous session refers to the remains session after the client login, unless the server is turned off or disconnected from the server, will
cancel the session.Recommended apply with sufficient server resources, network connections and sufficient number of license conditions.
1.4.2 Short Session (Default Is Short Session):
Short session means that the client is disconnected server, each session will be disconnected, its effectiveness is just the opposite continuous
session, recommended to keep the default when the server configuration is lower.
1.4.3 Session Cancelled
After some sessions to prevent disconnection, the program is still running and the process server's resources. You can select the "Logout while
session disconnected", "Logout while network error" function to cancel the session. The time can be selected according to the situation after
selecting the default time was: 10 seconds and 30 seconds.
